Twin Wall Guy Wire Bracket 5 Inch SS

  • In Stock
Choose Delivery Date At Checkout
£58.95
(Price includes VAT)
Seen it cheaper?
main product photo
  • Specifications
    Guarantee 30 Years
    Material Material 1.4509 (441) stainless steel
    Flue Parts Ceiling/Roof Supports
    More Colours Yes
  • Product Sizes

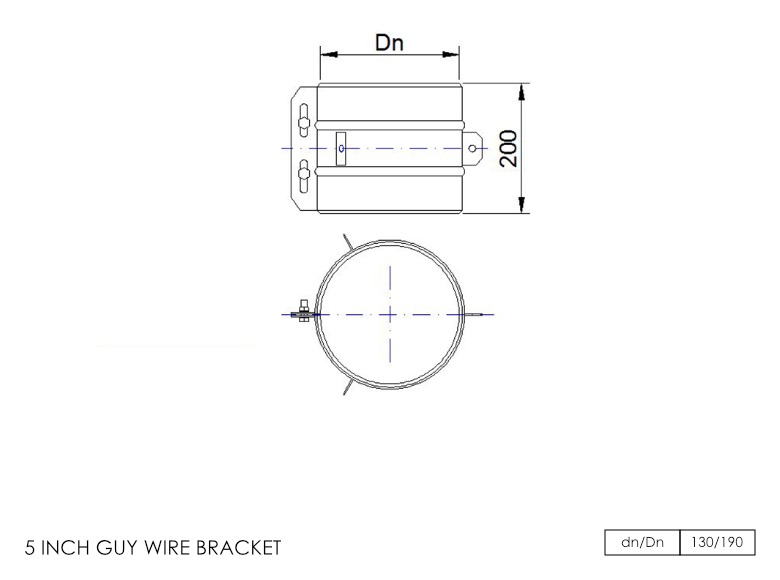

    Twin Wall Guy Wire Bracket 5 Inch SS
    Flue Diameter 5-Inch (125mm)
  • Description

    PLEASE NOTE THE DIAMETER ADVERTISED REFERS TO THE INTERNAL
    MEASUREMENT OF THE FLUE, NOT THE EXTERNAL MEASUREMENT.

    This 125mm (5") guy wire bracket is used in the case where flue extends high above a roof and needs extra support or otherwise where an extended region of the flue is unable to connect to the wall.

    We are so confident in the quality of our Twin wall chimney system it comes
    with a 30 year no quibble warranty and customer satisfaction guarantee.

    Features:
    • 30mm mineral wool insulation;
    • Core material stainless steel grade 1.4404 (AISI 316L);
    • Highest temperature test of T600 nominal and T1000 maximum;
    • 30 year warranty;
    • CE marked and G70/G50 rated depending on enclosure status;
    • Bespoke parts made to order;
    • Push-together installation, popular among installers;
    • Quick clip locking bands.

  • FAQs
    Can you have a short length of twin wall stainless steel flu going horizontal then back to vertical via a 90 degree bend to avoid roof timbers
    Question by: Ken lang on 5 Mar 2025, 17:58
    Hi,

    Thank you for your enquiry.

    You can not travel horizontally with the flue. You can put a 45 degree bend in with a length of pipe and then another 45 degree bend.

    Hope this helps
    Answer by: Damian Todd (Admin) on 8 Mar 2025, 16:01
