Twin Wall Base Support Long 5 Inch SS

  • In Stock
£155.82
(Price includes VAT)
Seen it cheaper?
main product photo
  • Specifications
    Guarantee 30 Years
    Material Stainless Steel
    Flue Parts Wall Supports
    Finish Options Stainless Steel
    More Colours No
  • Product Sizes

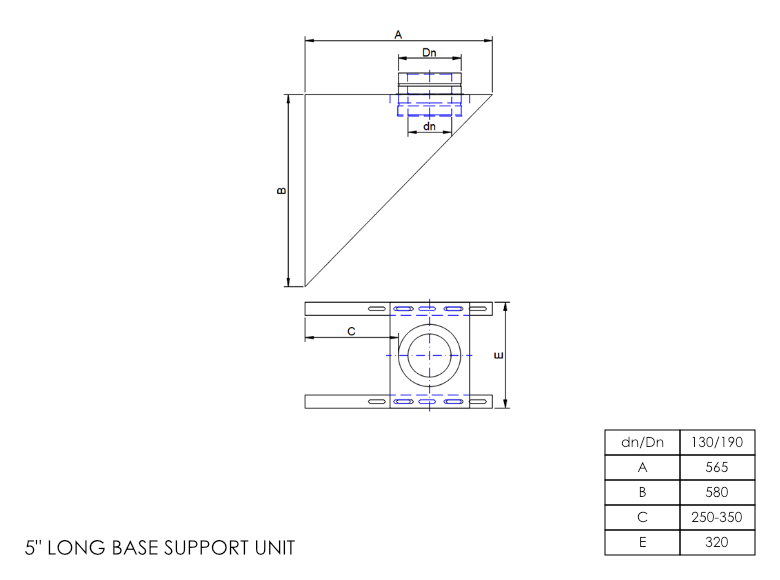

    Twin Wall Base Support Long 5 Inch SS
    Flue Diameter 5-Inch (125mm)
    Overall Height 580mm
    Distance to Combustibles - Sides Enclosed: 70mm - Unenclosed: 50mm
  • Description

    PLEASE NOTE THE DIAMETER ADVERTISED REFERS TO THE INTERNAL
    MEASUREMENT OF THE FLUE, NOT THE EXTERNAL MEASUREMENT.

    This 125mm (5") long base support set is used at the bottom of an external chimney system. It gives structural support to a flue system and we recommend use on all installations when going through a wall.

    We are so confident in the quality of our Twin wall chimney system it comes
    with a 30 year no quibble warranty and customer satisfaction guarantee.

    Features:
    • 30mm mineral wool insulation;
    • Core material stainless steel grade 1.4404 (AISI 316L);
    • Highest temperature test of T600 nominal and T1000 maximum;
    • 30 year warranty;
    • CE marked and G70/G50 rated depending on enclosure status;
    • Bespoke parts made to order;
    • Push-together installation, popular among installers;
    • Quick clip locking bands.
