Narrow Boat Twin Wall Flue Kit MB

PLEASE NOTE: The diameter advertised refers to the internal measurement of the flue, not the external measurement.

This narrowboat flue kit is a high-quality twin wall system designed for use where an insulated twin wall flue passes through the deck of a narrowboat.

It provides a safe and professional solution for deck penetrations, allowing you to install a stove or appliance in locations where a traditional masonry chimney is not present. Designed with both performance and ease of installation in mind, this system ensures a neat finish while maintaining safe clearances to surrounding materials.

With its durable construction and matt black powder-coated finish, it integrates seamlessly with our black twin wall flue systems, delivering both reliability and a clean, modern appearance.

Twin wall systems are commonly used in narrowboat installations due to their insulated design, which helps to reduce heat transfer and allows safe installation through structures such as decks and roofs.

Included in Kit 1 (from bottom to top):

• Adapter – please choose 4" or 5"
• 380-585mm Adjustable Length
• 1000mm Length

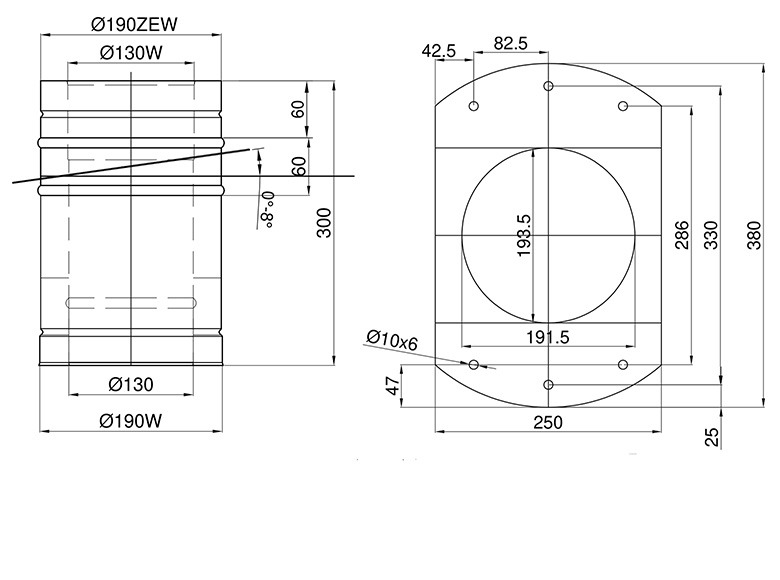

• Deck Plate Adapter
• 500mm Length
• Rain Cap
• Deck Cap

Included in Kits 2, 3 & 4 (from bottom to top):

• Adapter – please choose 4" or 5"
• 380-585mm Adjustable Length
• 15°, 30° or 45° Bend
• 590-1005mm Adjustable Length
• 15°, 30° or 45° Bend
• Deck Plate Adapter
• 500mm Length
• Rain Cap
• Deck Cap

We are so confident in the quality of our twin wall chimney system that it comes with a 30 year no-quibble warranty and customer satisfaction guarantee.

Features:

• 30mm mineral wool insulation
• Core material: stainless steel grade 1.4404 (AISI 316L)
• Highest temperature test of T600 nominal and T1000 maximum
• 30 year warranty
• CE marked and G70/G50 rated depending on enclosure status
• Bespoke parts made to order
• Push-together installation, popular among installers
• Quick clip locking bands
